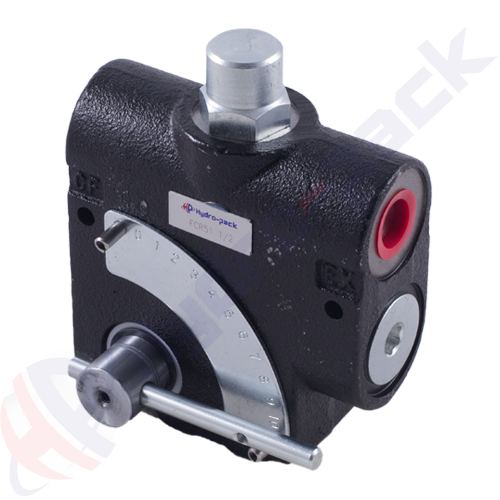

FCR51-1/2 3 Way Pressure Compensated Flow Control Valve

FCR51 series valves are pressure compensated adjustable flow control valves.

Availability: +100 Availability: 0 Brand: Hydro-Pack

 72.00

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

FCR51 Series Pressure Compensated Flow Control Valves

3 PORT PRESSURE COMPENSATED FLOW CONTROL VALVE WITH RELIEF

FCR51 NPT 1/2

These valves are pressure compensated adjustable flow control valves. By rotating the handle, the flow out the “CF” or controlled flow port can be varied. Any remaining flow is bypassed to the “EF” or excess flow port. Once the controlled flow is set, it will remain nearly constant with variations in pressure on either the controlled or excess flow ports. There is a pressure relief valve in valve body. EF port must be connected to oil tank.

* Relief valve standard setting is 110 bar.

Adjustable pressure range is 5-200 bar

Ports: NPT 1/2”

Specification

Ports NPT 1/2
Max. Pressure 200
Serie FCR51
Part Number FCR51 NPT 1/2

Document

Technical Catalogue Catalogue.pdf
