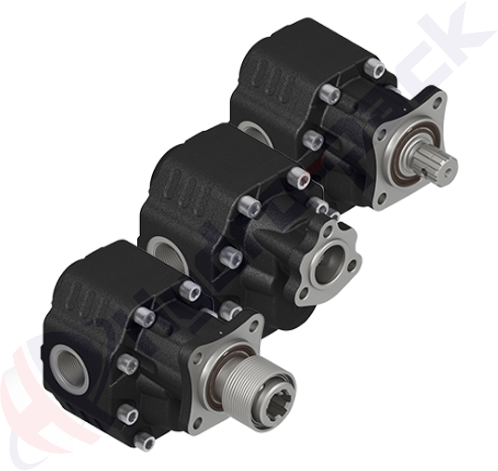

Cast Iron Gear & Piston Pumps

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydro-pack offer wide range of cast iron gear pumps and piston pumps with different specifications for trucks and mobile applications.

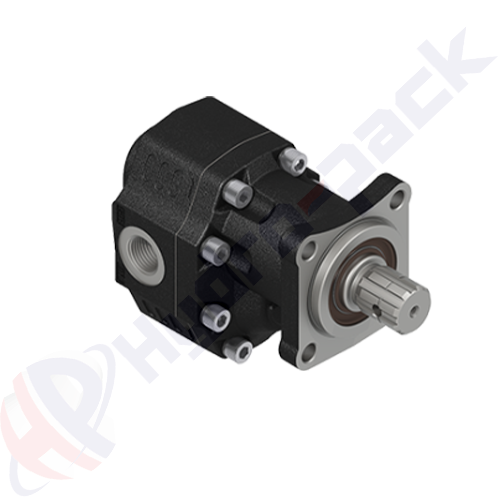

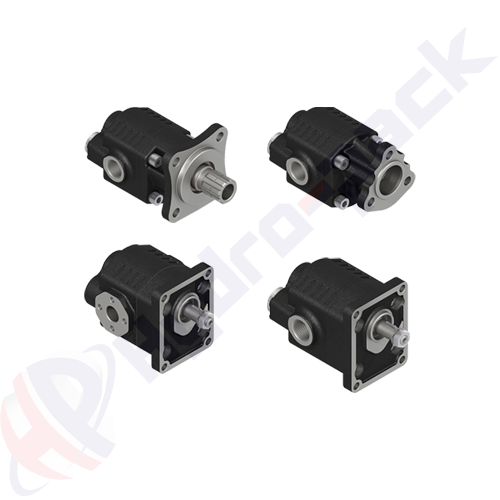

Group 20 Cast Iron Pumps

Displacement: From 6 cc/rev…40 cc/rev
Max. cont. pressure: Up to 280 bar
Max. cont. speed: Up to 2300 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

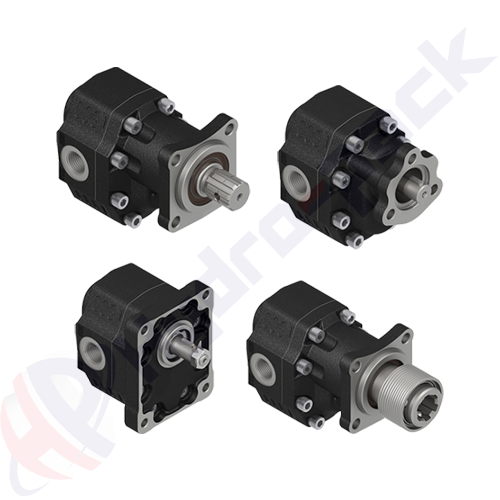

Group 30 Cast Iron Pumps

Displacement: From 17 cc/rev…125 cc/rev
Max. cont. pressure: Up to 300 bar
Max. cont. speed: Up to 2600 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

Group 35 Cast Iron Pumps

Displacement: From 60 cc/rev…125 cc/rev
Max. cont. pressure: Up to 250 bar
Max. cont. speed: Up to 1800 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

Group 40 Cast Iron Pumps

Displacement: From 63 cc/rev…151 cc/rev
Max. cont. pressure: Up to 280 bar
Max. cont. speed: Up to 1800 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

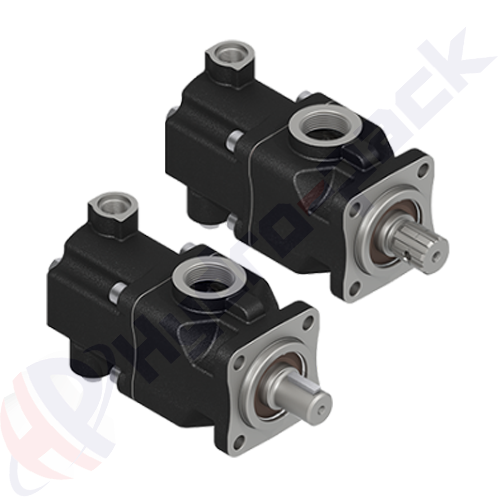

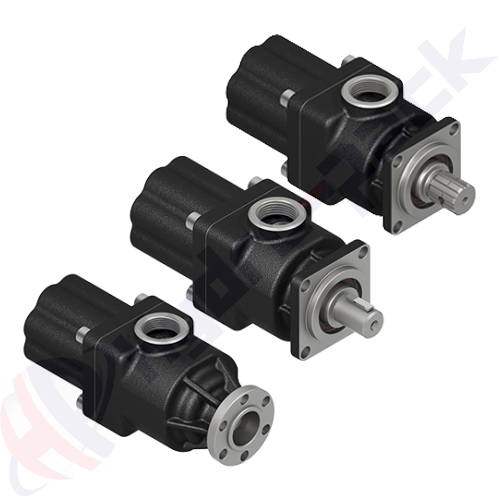

Cast Iron Pumps (6 Pistons)

Displacement: From 26 cc/rev…52 cc/rev
Max. cont. pressure: 250 bar
Max. cont. speed: 1800 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

Cast Iron Pumps (8 Pistons)

Displacement: From 20 cc/rev…60 cc/rev
Max. cont. pressure: 350 bar
Max. cont. speed:1800 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

Cast Iron Pumps (9 Pistons)

Displacement: 60 and 80 cc/rev
Max. cont. pressure: 270 bar
Max. cont. speed: 1500 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

Cast Iron Pumps (10 Pistons)

Displacement: From 60 cc/rev…100 cc/rev
Max. cont. pressure: 300 bar
Max. cont. speed: 1500 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

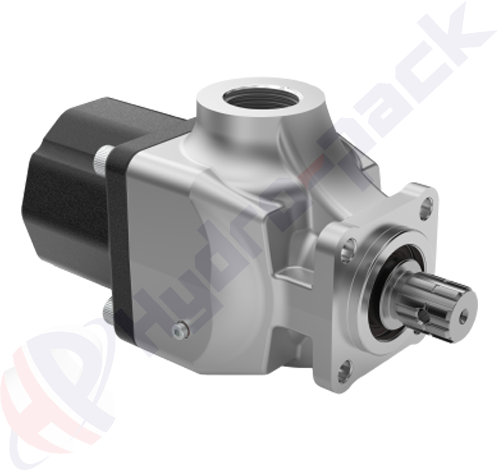

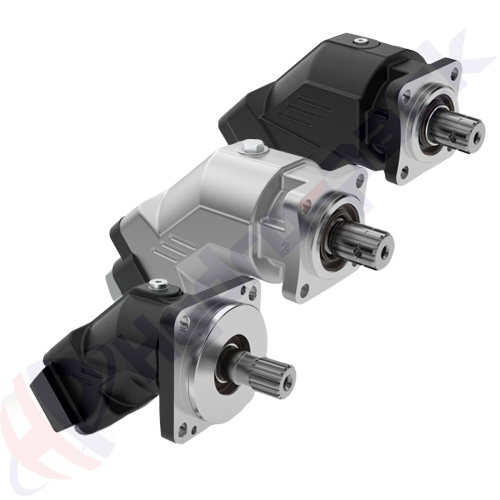

Bent Axis Piston Pumps

Displacement: From 23 cc/rev…125 cc/rev
Max. cont. pressure: Up to 350 bar
Max. cont. speed: Up to 3050 rpm
Fluid temperature range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

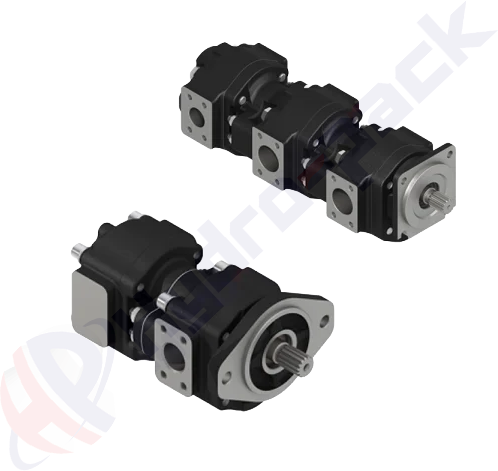

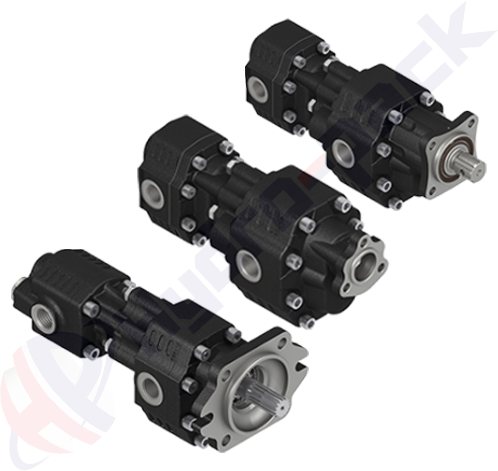

Group 30 Cast Iron Tandem Pumps

Product information content is still being updated. Please feel free to contact us for further information.

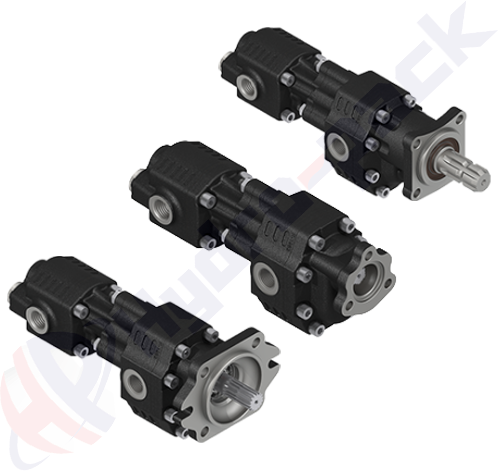

Group 40 Cast Iron Tandem Pumps

Displacement: From 63 cc/rev…151 cc/rev
Max. cont. pressure: Up to 280 bar
Max. cont. speed: Up to 1800 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt

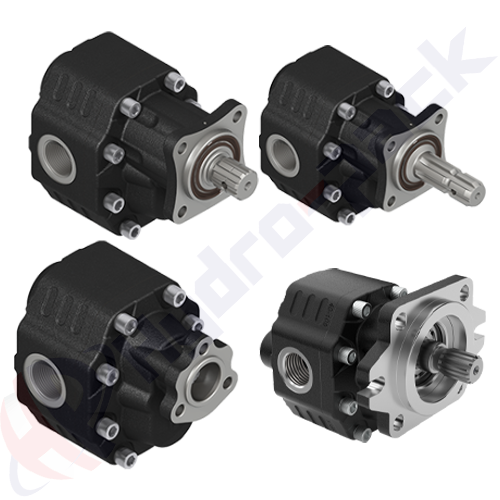

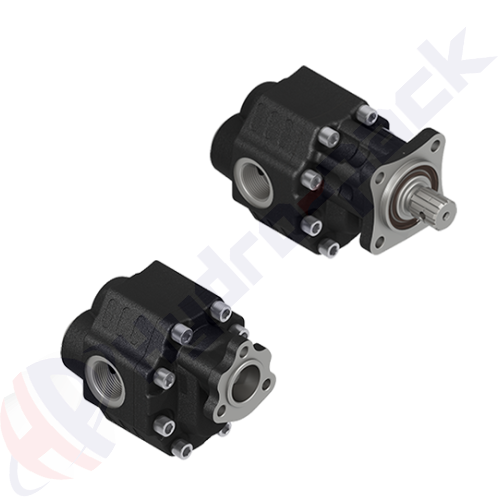

Special Cast Iron Pumps

Product information content is still being updated. Please feel free to contact us for further information.

Special Cast Iron Tandem Pumps

Product information content is still being updated. Please feel free to contact us for further information.

Group 30 Cast Iron Gear Motors

Product information content is still being updated. Please feel free to contact us for further information.

Group 40 Cast Iron Gear Motors

Product information content is still being updated. Please feel free to contact us for further information.

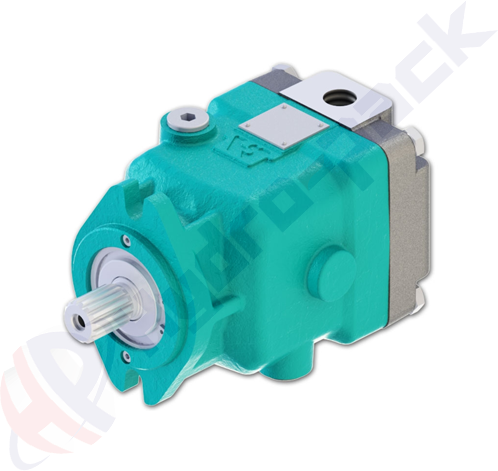

MAP Series Axial Piston Pumps

Product information content is still being updated. Please feel free to contact us for further information.

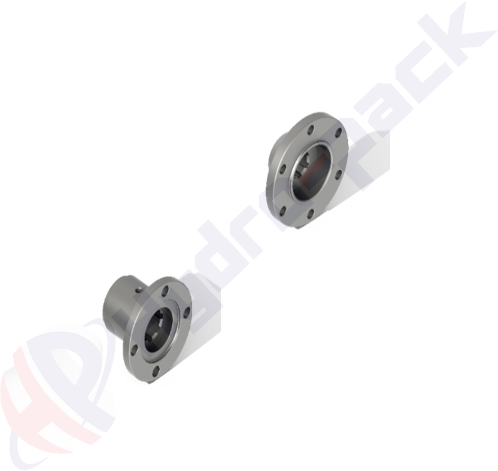

Flanges

Product information content is still being updated. Please feel free to contact us for further information.

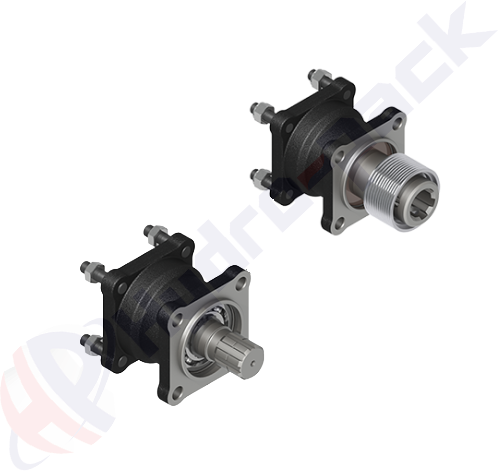

Adapters

Product information content is still being updated. Please feel free to contact us for further information.

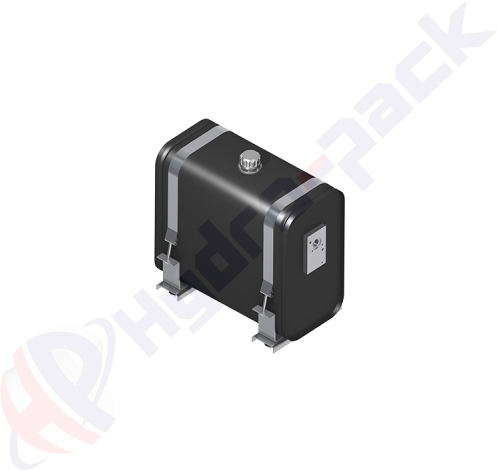

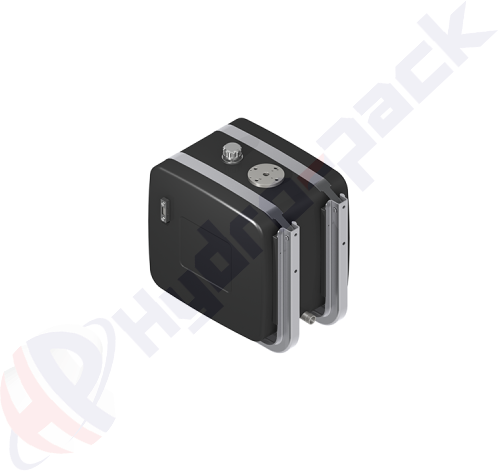

Rear Mounted Tanks with Filter

Product information content is still being updated. Please feel free to contact us for further information.

Rear Mounted Tanks without Filter

Product information content is still being updated. Please feel free to contact us for further information.

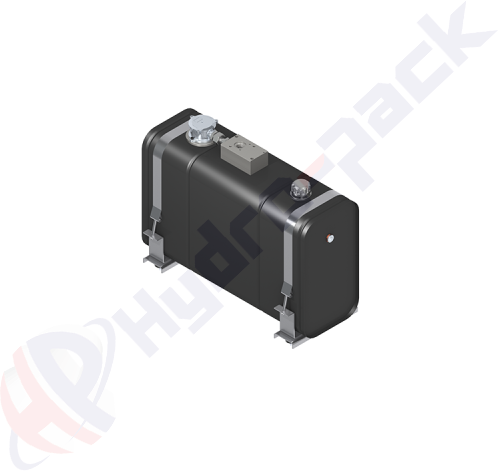

Side Mounted Tanks with Internal Filter

Product information content is still being updated. Please feel free to contact us for further information.
