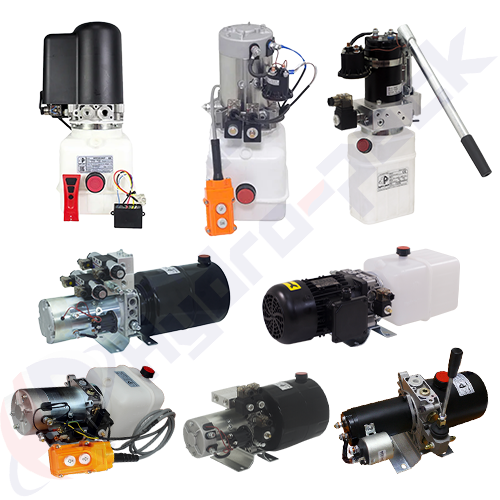

Hydraulic Mini Power Packs

Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders and other complementary parts of a given hydraulic system. Hydro-pack provide mini power packs up to 5.5 kW in standard range. Hydro-pack also offer wide range of solutions suitable for different applications such as tippers, dock levelers, car lifts, stackers, wheelchair lifts and more.

Tipper Power Packs

Electric motor: 1.6 kW 12 V DC
Pump: 2.1 cc/rev, 5 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 200 bar

Lift Gate Power Packs

Electric motor: 2.2 kW 24 V
Pump: 2.1 cc/rev, 5 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 200 bar

Dock Leveler Power Packs

Electric motor: 1.1 kW 380 V, 2800 rpm, 50 Hz., S3 working duty
Pump: 1.8 cc/rev, 5 liter/min @ 2800 rpm
Oil tank: 8 liter plastic tank, horizontal mounting
Max pressure: 120 bar

Wheelchair Lift Power Packs

Electric motor: 0.8 kW 12 V
Pump: 0.5 cc/rev, 1.6 liter/min @ 3500 rpm
Oil tank: 1.5 liter plastic tank, horizontal/vertical mounting
Max pressure: 220 bar

Car Lift Power Packs

Electric motor: 2.2 kW 380 V, 1500 rpm, 50 Hz.
Pump: 4.2 cc/rev, 6 liter/min @ 1500 rpm
Oil tank: 12 liter cylinder tank, vertical mounting
Max pressure: 190 bar

Stacker Power Packs

Electric motor: 1.6 kW 12 V
Pump: 1.3 cc/rev, 3.2 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 220 bar

Snow Plough Power Packs

Electric motor: 3 kW 24 V
Pump: 2.1 cc/rev, 7.3 liter/min @ 3500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 205 bar

Dump Trailer Power Packs

Electric motor: 1.6 kW 12 V DC
Hydraulic pump: 2.1 cc/rev
Oil tank: 4 liter plastic tank, horizontal assembly
Max. pressure: 155 bar

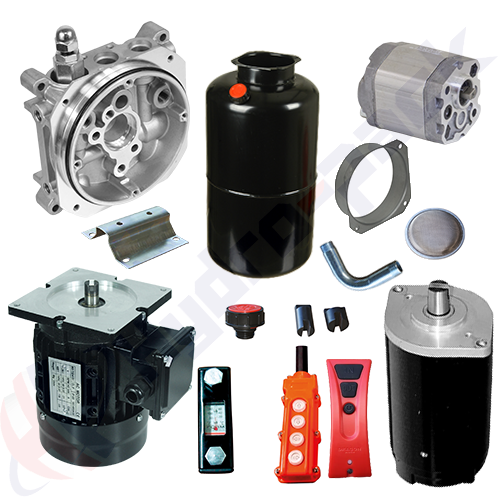

Mini Power Packs Accessories

With hydraulic power unit accessories you can make your hydraulic power units more useful.
