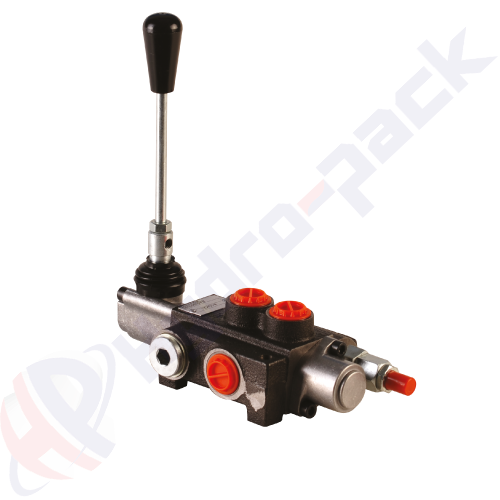

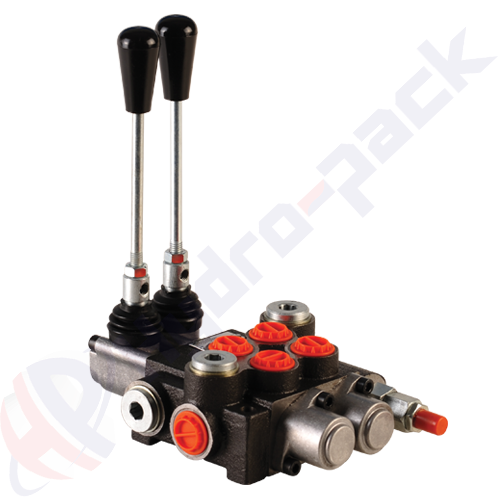

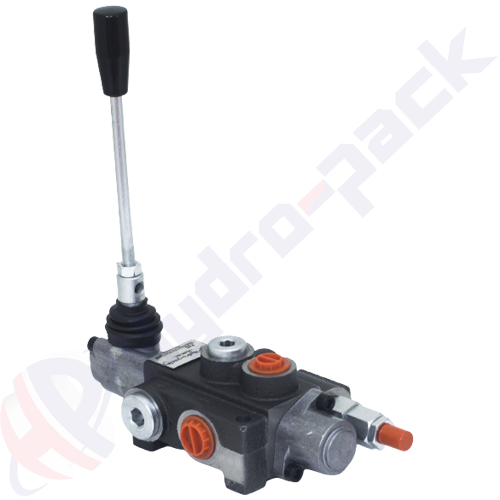

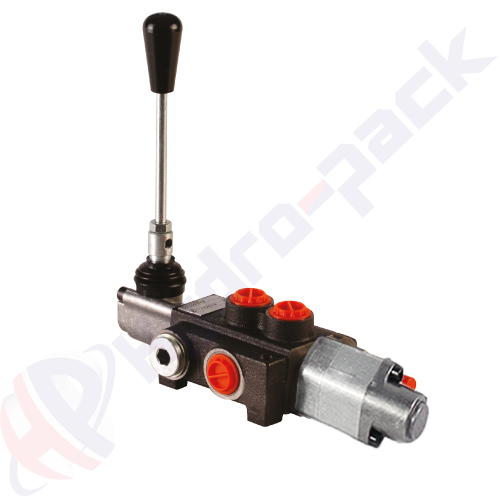

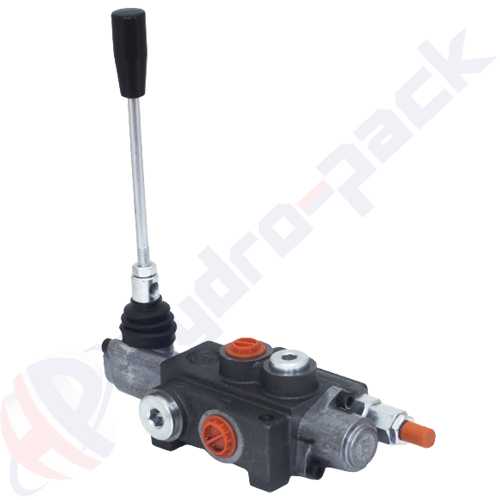

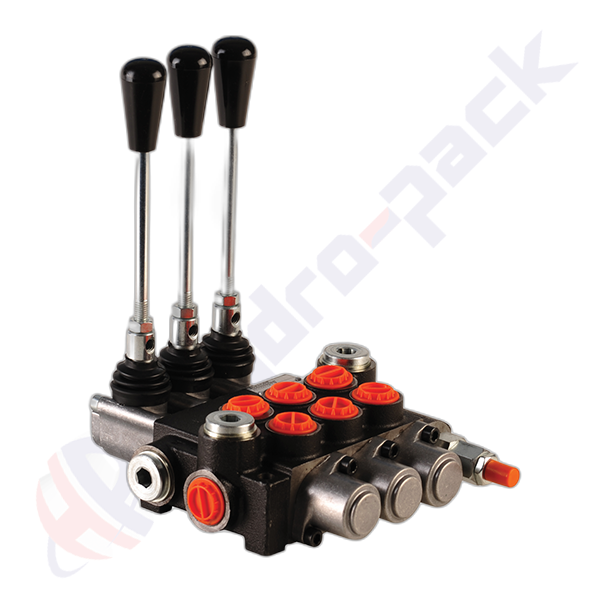

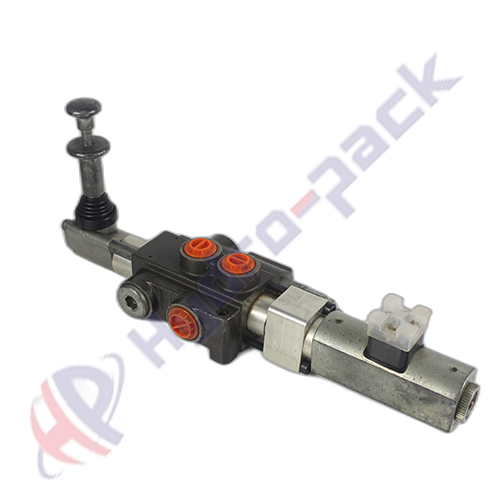

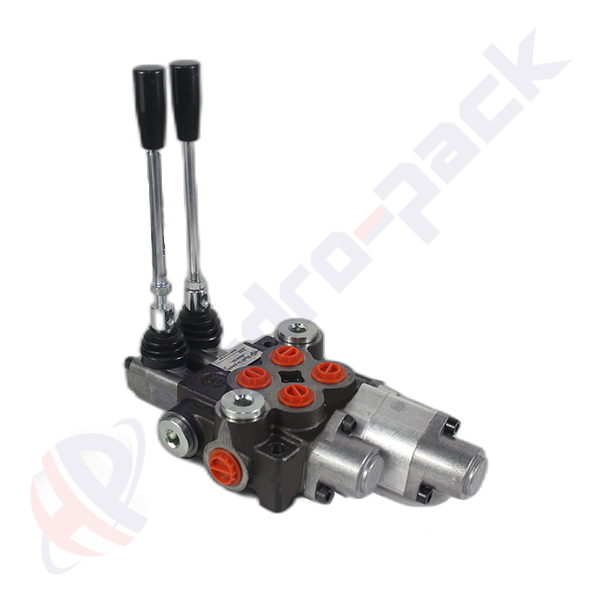

The Z50 Series Monoblock Control Valves with Metering Curve offer a flow rate of 50 liters/min and max pressure of 315 bar (T: 50 bar, A-B: 300 bar). Featuring a standard open center spool (A spool) with various options and available in 1 to 7 spools, these valves ensure precise control with 5 cm³/min leakage at 100 bar. They operate within a fluid temperature range of -10°C to +80°C, using mineral-based hydraulic oil (10-100 cSt, ideally 46 cSt), and include filtration of 10 to NAS 1638. Ideal for applications requiring metering precision.
