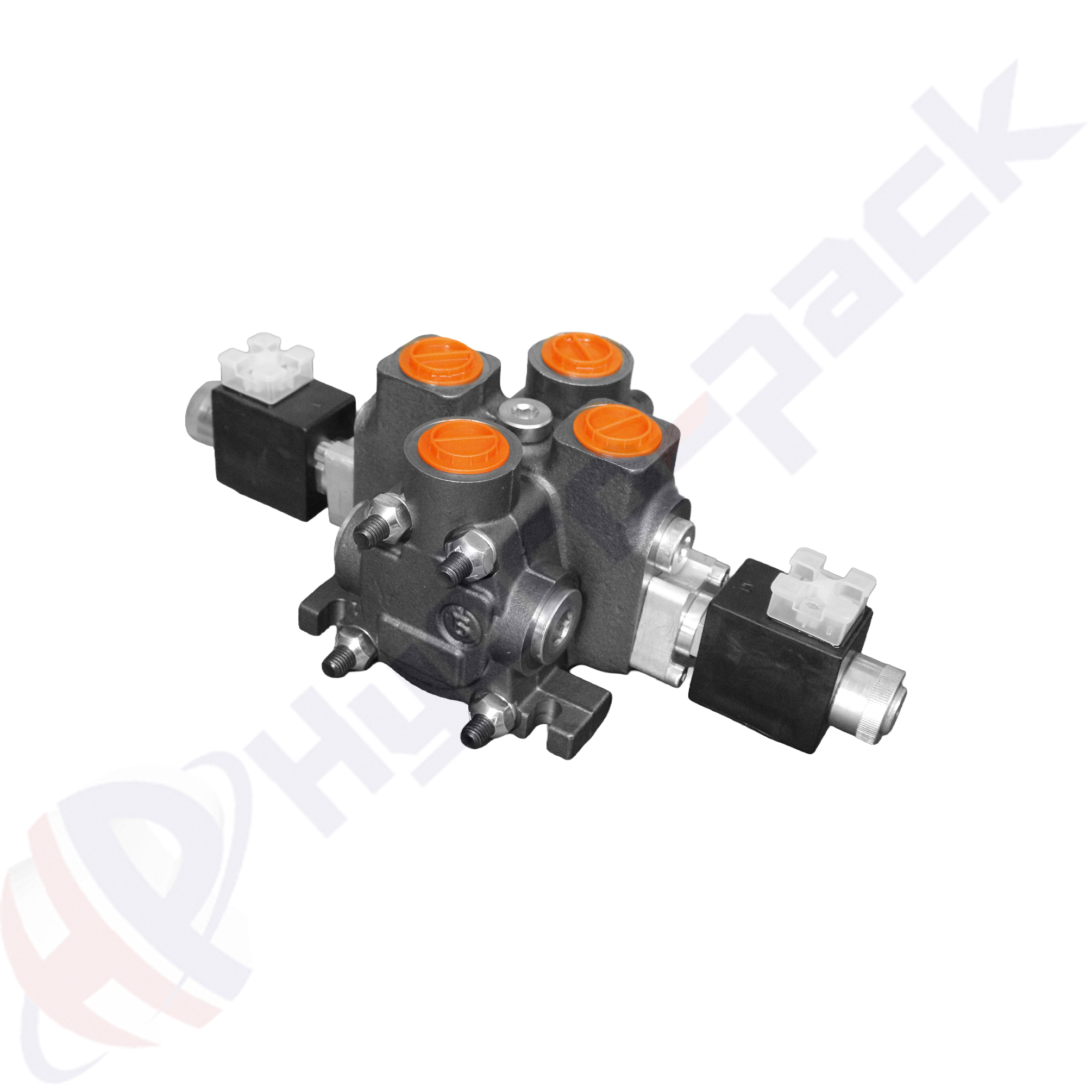

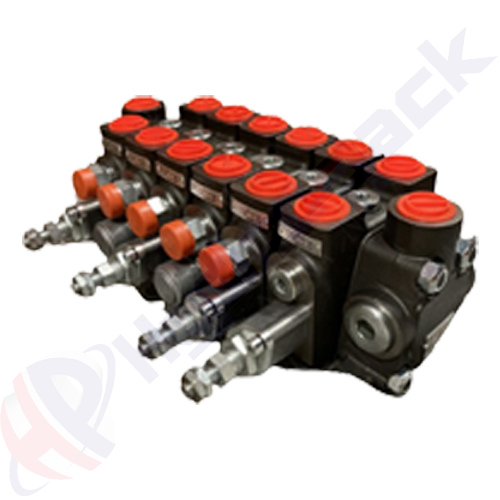

The ZC100 Series Sectional Directional Control Valves deliver a nominal flow rate of 80 liters/min, with a maximum flow rate of 100 liters/min, and a max pressure of 210 bar (T: 50 bar, A-B: 250 bar). Featuring a standard open center spool (A spool) and various spool options, these valves are available in 1 to 8 spools and offer leakage of 20-40 cm³/min at 120 bar. They operate on 12 V or 24 V DC, within a fluid temperature range of -10°C to +80°C, using mineral-based hydraulic oil (10-100 cSt, ideally 46 cSt), and include filtration of 10 to NAS 1638. Suitable for diverse hydraulic applications.
