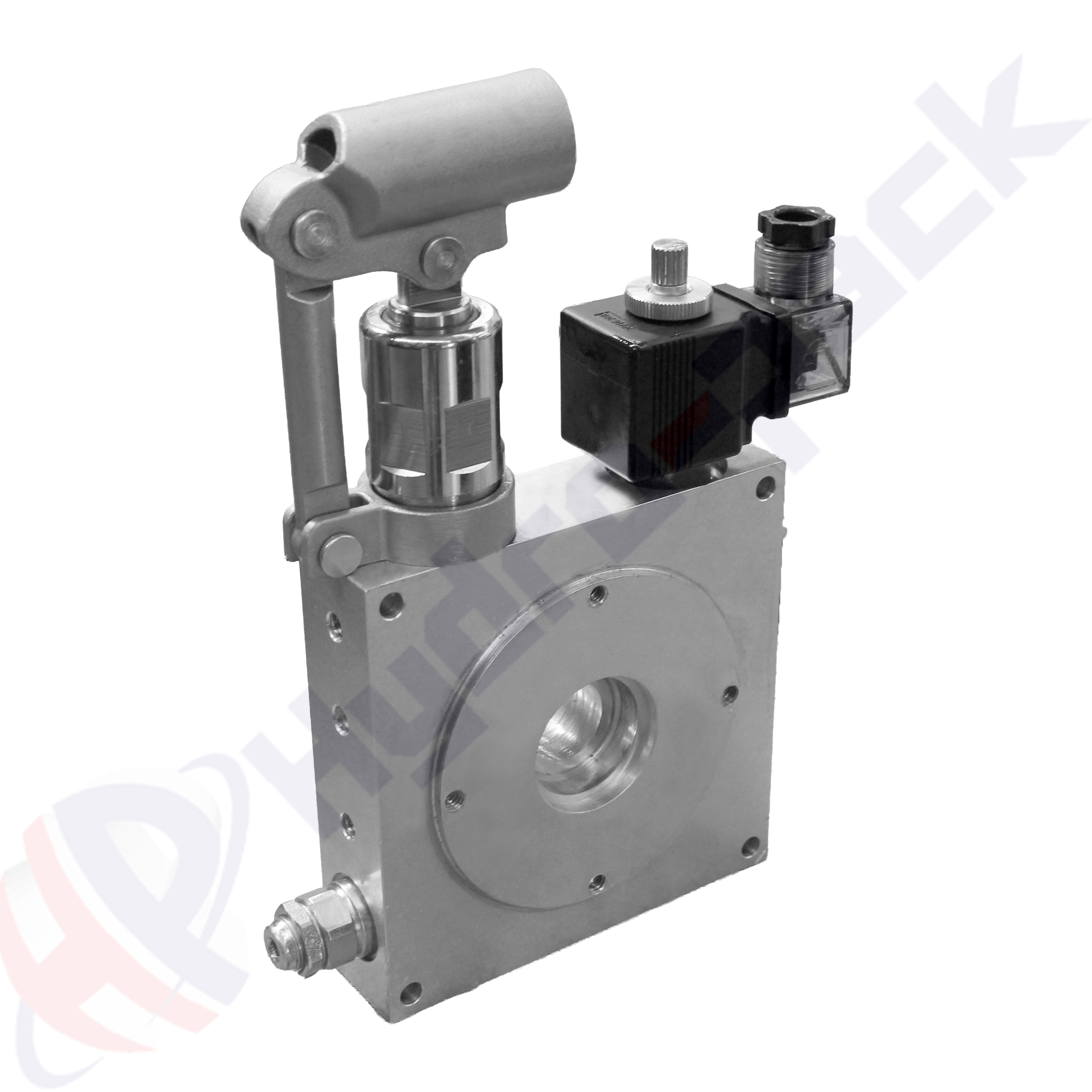

HP-MBWPHP, Main Block With Poppet & Hand Pump

The main blocks of the mini power pack can be thought of as the ‘brain’ of the mini power units used in the system. The operating systems within the mini power units are managed by the main blocks located on the power units themselves.

Availability: 0 Availability: 0 Brand: Hydro-Pack

 98,00

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

MAIN BLOCKS

HP-MBWPHP

Hydraulic main blocks are the components that form the control mechanism of mini power units. Different main blocks are used in different mini power unit applications. Main blocks with the code HP-MBWPHP are those used with Group 10 mini power unit pumps with poppet valve and integrated hand pump.

Material : Aluminium Alloy (AlSi11Cu2(Fe))

Ports : G 3/8 (P-T ports)

Maximum Operating Pressure : 230 Bar

Note : Block includes relief valve and check valve on body.
