00A0.5X047 Group 00 Hydraulic Gear Pump

Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 00 external gear pumps with different specifications.

Availability: 30 Availability: 0 Brand: Hydro-Pack

 60.00

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

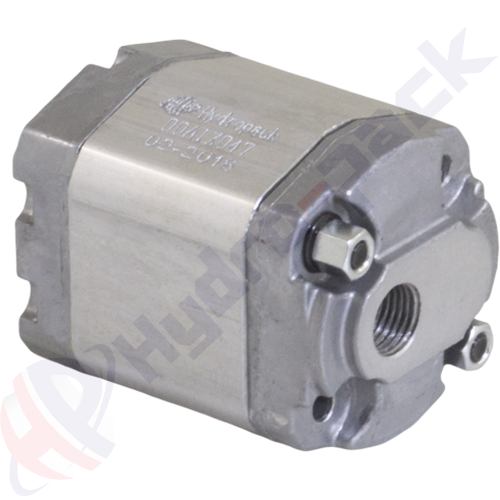

00A0.5X047 Hydraulic Gear Pump

00A0.5X047

Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 00 external gear pumps with different specifications.

* Rotation is anti - clockwise from shaft view

* Max. pressure refers to P1 pressure (Max. continuous pressure)

Specification

Displacement 0.5
Rotation anti-clockwise
Flange Type 2 bolt threaded flange 22 mm
Shaft Type dihedral shaft
Ports BSP port (suction)
Max. Pressure 200
Max. Speed 3500
Serie 00A0.5X047

Document

Technical Catalogue Catalogue.pdf
