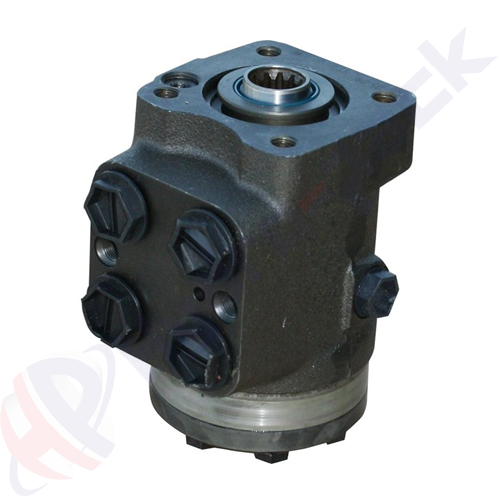

HKULS800/5T Steering Unit

Hydrostatic steering is an hydraulic steering system that does not require mechanical steering linkage. In place of mechanical linkage, a steering unit and steering cylinders along with flexible hoses are used.

Availability: 0 Availability: 0 Brand: M+S

Contact Us

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

HKULS800/5T- STEERING UNIT

HKULS800/5T- | M+S HYDRAULIC STEERING UNIT |

Hydropack provide steering units which are used in industrial vehicles, agricultural tractors, marine ships, constructional equipment and servo-type systems where directional steering is needed.

HKUL is a load steering unit specially developed for large displacement in order to minimize flow loss. HKUL is extremely suitable for large vehicles, which maximum speed does not exceed 60 km/h and works together with dynamic priority valve. HKULS series steering units are based on the HKUL series units but have built-in relief and check valves. They enable very compact system which reduces the need for additional hydraulic components.



* Closed Center, non reaction, load sensing outlet

* Displacement: 800 cc/rev

* Rated Flow: 70 liter/min

* Rated Pressure: 175 bar

*LS-Valve Pressure Settings: 100 bar

* Ports: G 1/2"

Specification

Document

Technical Catalogue Catalogue.pdf
